DESIGNING IN BRICK: BRICK SIZES
Brick is one of the oldest and most common building materials used in the world. There are several different types of brick, each available in a variety of sizes, because we recognize the needs of building designs will vary in terms of functional requirements, aesthetic requirements, and local building codes.
Below we’ll break down four of the most common brick sizes used in residential construction so you can decide which size of brick is most appropriate for your home style. Regardless of the size selected, your new brick home will provide the same unbeatable benefits of brick that no other building material can offer… for a lifetime and beyond.
|

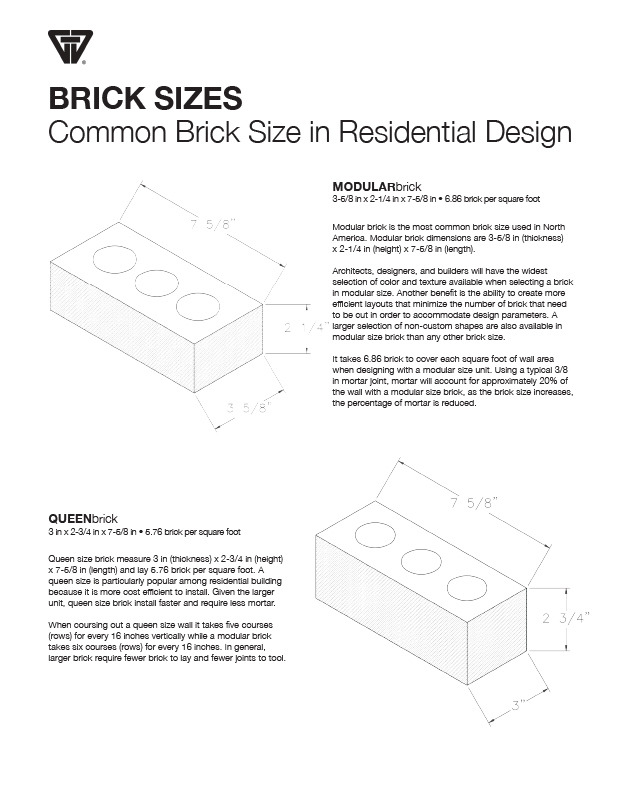

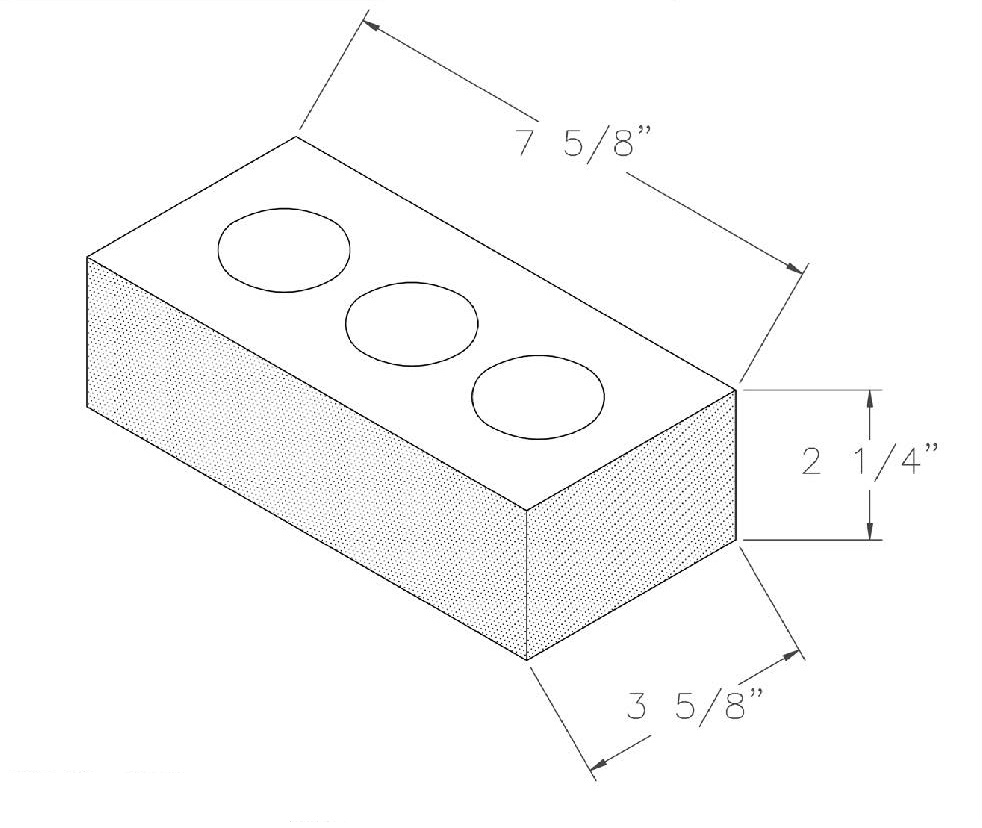

Modular brick is the most common brick size used in North America. Modular brick dimensions are 3-5/8 in (thickness) x 2-1/4 in (height) x 7-5/8 in (length).
Architects, designers, and builders will have the widest selection of color and texture available when selecting a brick in modular size. Another benefit is the ability to create more efficient layouts that minimize the number of brick that need to be cut in order to accommodate design parameters. A larger selection of non-custom shapes are also available in modular size brick than any other brick size.
It takes 6.86 brick to cover each square foot of wall area when designing with a modular size unit. Using a typical 3/8 mortar joint, mortar will account for approximately 20% of the wall with a modular size brick, as the brick size increases, the percentage of mortar is reduced.
|
|---|---|
|

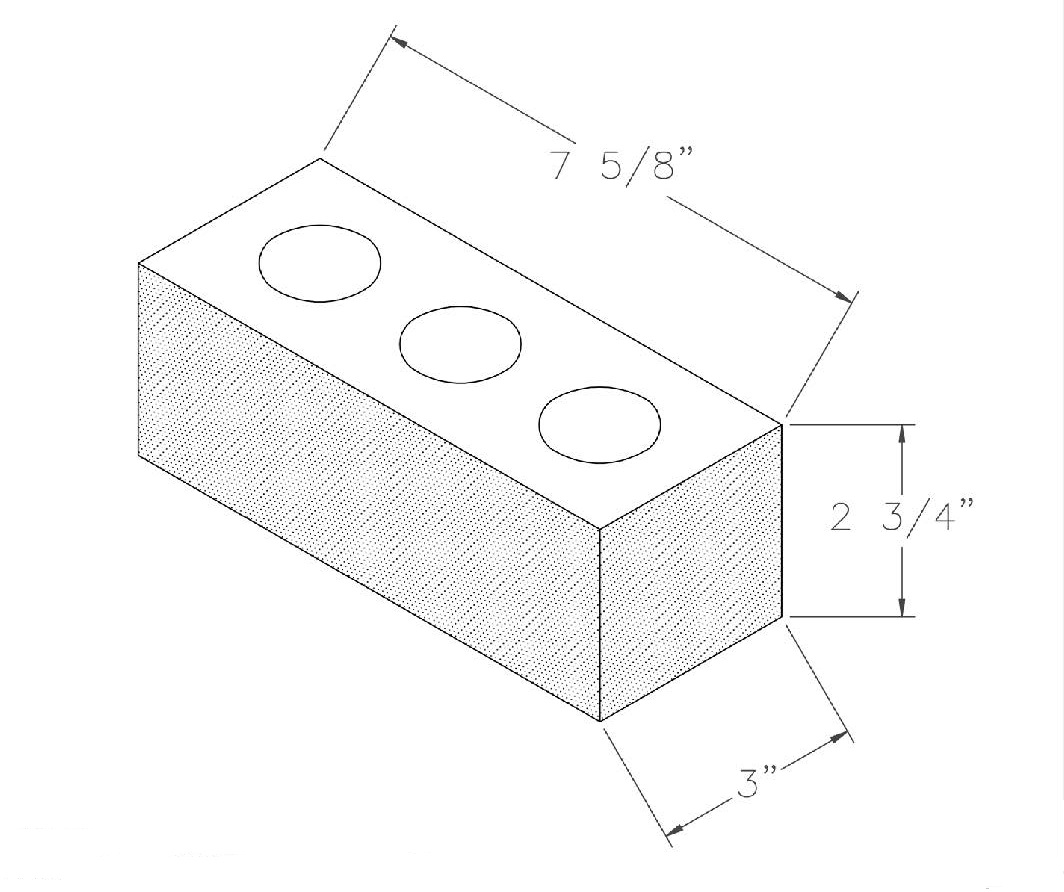

Queen size brick measure 3 in (thickness) x 2-3/4 in (height) x 7-5/8 in (length) and lay 5.76 brick per square foot. A queen size is particularly popular among residential building because it is more cost efficient to install. Given the larger unit, queen size brick install faster and require less mortar.
|
|
Handmade Oversize brick are a unique and aesthetically pleasing brick selection. Each brick is crafted individually by hand to reveal the true artistry of a classic material with endless contemporary applications. No two handmade brick look identical, and that’s exactly why they remain one of the most premium and sought-after brick products available. Glen-Gery’s line of handmade brick is rich in character and adds variation to any design. The classic charisma of this brick is matched only by its versatility and ability to enhance any residential or commercial project.
Handmade oversize is 4 in. (thickness) x 2-3/4 in. (height) x 8-1/2 in. (length) and take 5.9 brick to cover a square foot of space, a larger unit than a modular brick. These brick are also 100% solid units, without core holes.
|
|
With a nominal length of two feet long, the Roman Maximus evokes feelings of sophistication, exclusivity, and prestige. Roman Maximus brick is characteristically longer and more linear than those of typical modern brick. They are ideal for creating a regal and distinct look to any structure.

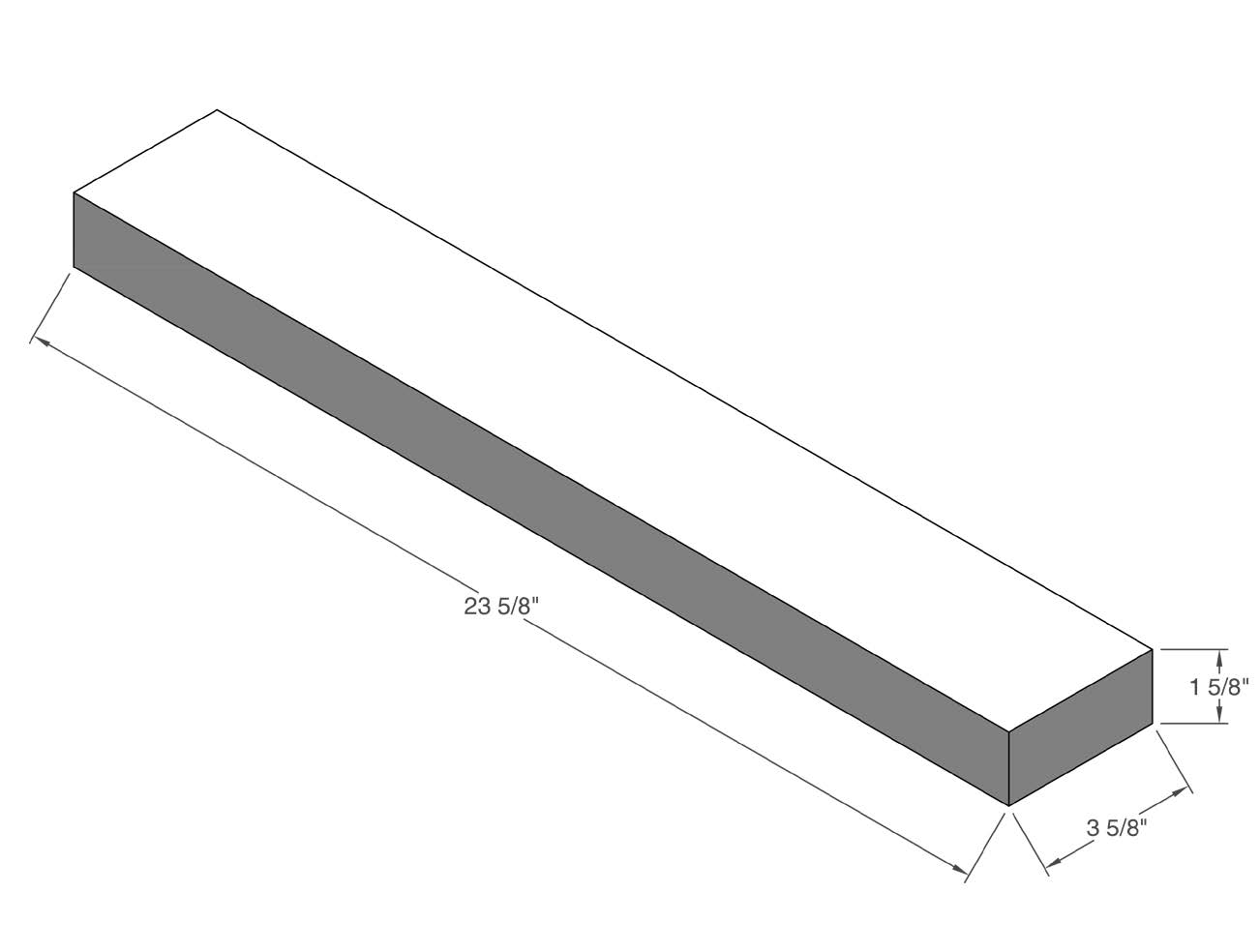

The Maximus size measures at 3-5/8 in (thickness) x 1-5/8 in (height) x 23-5/8 (length) in and takes 3 brick per square foot. The Roman Maximus product by Glen-Gery is unique because it is packaged with more than just a single size brick. Seventy percent of the packaging for a Roman Maximus product is at the 23-5/8 in length, fifteen percent is at Roman size which is 3-5/8 in x 1-5/8 in x 11-5/8 in and the balance of the packaging is random lengths from 4 in. to 20 in. This packaging enables the mason to install the brick where no two joints align, called a Sicilian bond.
